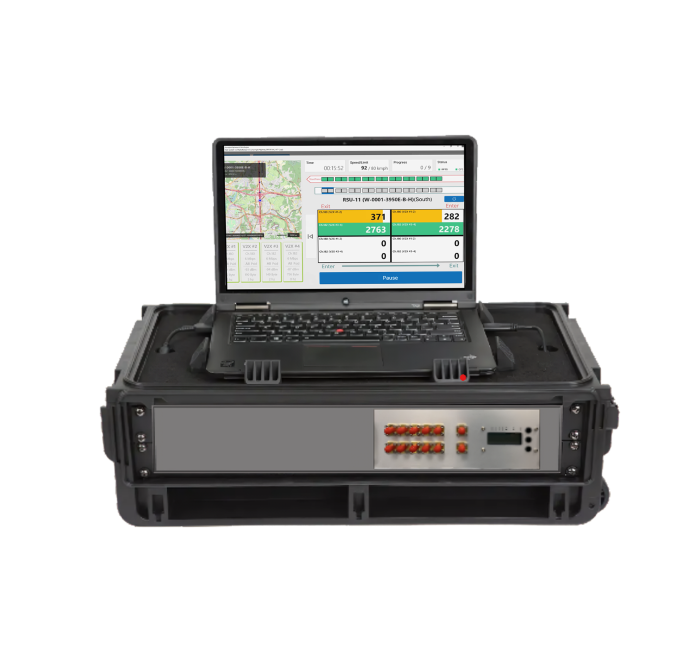

WCEX-RPTS
Roadside unit performance test system
- Ensuring V2X RSU Performance Compliance with National Standards
- WCEX-RPTS is a specialized testing system designed to measure the basic performance of Roadside Units (RSUs) deployed on roadways. It ensures compliance with the basic performance requirements set as national standards for Intelligent Transportation Systems (ITS). WCEX-RPTS is an essential solution for verifying
the adherence of RSUs to these national standards and has been successfully delivered as the core equipment for basic performance testing to the Korea Expressway Corporation (Kr-EX).
Functions
- Performs basic, completion, and periodic evaluations of Roadside Units (RSUs)
- Equipped with a 4-channel V2X receiver and high- precision GNSS
- Supports testing of multiple RSUs within a driving section
- Generates test performance and results, and manages logs through a GUI-based interface
Features
- A test system for measuring the basic performance of RSUs, including installation standards on roads
- Tests for compliance with the Ministry of Land, Infrastructure, and Transport's ITS basic performance requirements
- RSU basic performance testing equipment delivered to Korea Expressway Corporation (Kr-EX)
Specification
| Laptop | Intel i7 2.5GHz, RAM 16GB, SSD 200GB |
|---|---|
| V2X Radio | WAVE/DSRC, C-V2X |
| V2X Receiving Performance | PER <5% for All V2X Channel/Datarate/Speeds(30/60/80kmph) |
| V2X Test Message Filter | Channel, Datarate, and PSID |
| V2X Antenna Specification | 3dbm(±0.5), Cable: -5.2dBm(±0.26 Loss)/2.5m/2.5 |
| Modems in Unit | 4 |
| Modem Group for Test | 4xs1 or 2x2 or 1x4 (Modem x Channel) |
| Unit I/O Port | V2X Main & Sub Antenna pairs: 4, GNSS Antenna In: 1, 1PPS Out: 1, Ethernet: 1 |
| Power Consumption | 110V/ 220VAC 1.8A Max |
Unit Size (Inc. Exterior Housing) |
403.2 x 155.6 x 562.0 (W x H x D, mm) |
| Unit Weight (Inc. Exterior Housing) |
8.62kg |
