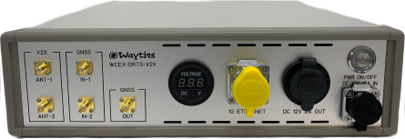

WCEX-DRTS
V2X Drive Test System
- V2X Basic Safety Message conformance test solution
- WCEX-DRTS is a conformance testing tool designed to ensure compliance with SAE standards J2945/1, J3161/1, and J2735, focusing on On-Board System Requirements for V2V Safety Communications. Equipped with a V2X packet sniffer and a high-precision GNSS system, it analyzes Basic Safety Messages (BSMs) received from the Device Under Test (DUT). After testing, it generates a detailed, comprehensive report.
Functions
- Location, Altitude, Direction accuracy
- Route history and distance (horizontal/vertical distance)
- Hard braking
- Renewing certificate
- Real-time dashboard
- Automated report generation
Features
- BSM performance & conformance test solution compliant with SAE J2945/1, J3161/1, J2735
- Receiving BSM messages sent by V2X OBU in a real vehicle driving environment and assessing message accuracy and conformity to standards
- USA OmniAir Qualified Test Equipment
Specification
| CPU | Intel Atom x6425E Processor 1.5M Cache, up to 3.00 GHz |
|---|---|
| Core/Thread | 4 core / 4 Thread |
| Memory | DDR4-3200 16GB |
| SSD | NVMe SSD 512GB |
| OSt | Ubuntu 22.04 |
| Size | 330 x 360 x 90 (W x H x D, mm) |
| Weight | 4.65kg |
| Ports | GNSS, V2X, Ethernet, Power |
| DGNSS | Signal: GPS, GLONASS, BEIDOU, QZSS Performance: 10cm ± 1ppm |
