XCAT-Optic Master
Portable optical network testing solution
- Portable optical network testing solution
- XCAT-Optic Master is a hand-held optical measuring instrument that integrates the functions required for fiber optic network field service. It combines the major operation functions used for optical line maintenance into a single system and uses a dedicated app to control all measurements and check the measurement results in the form of a full touch screen.
Use XCAT-Optic Master to
- Optical fiber line maintenance service
- OTDR - Live Fiber Test
Features

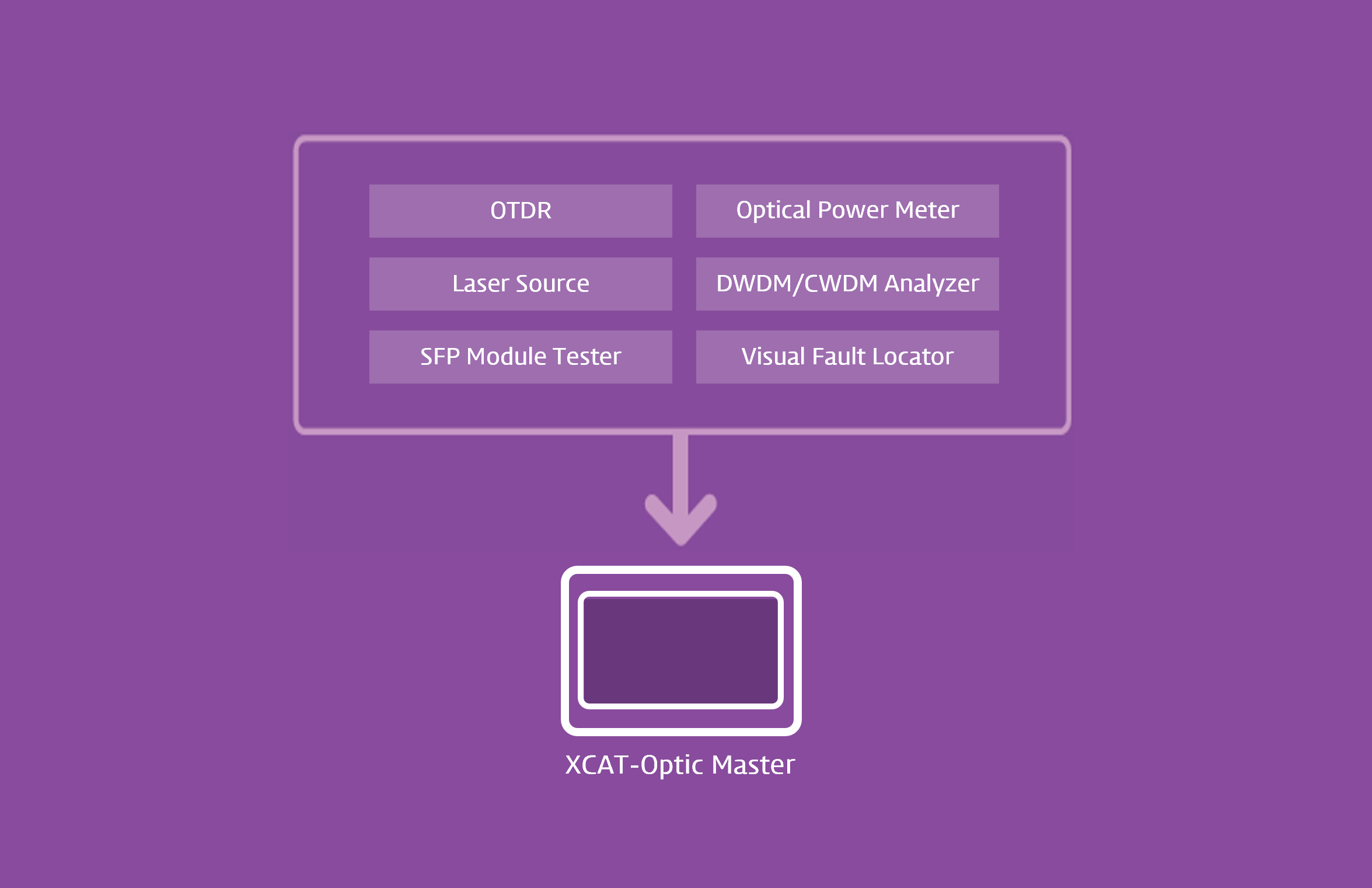

- Integrate various functions in one H/W Solution
- OTDR
- Optical Power Meter
- Laser Source
- DWDM/CWDM Analyzer
- SFP Module Tester
- Visual Fault Locator
- Intuitive user interface and server connectivity
- Control and measure all functions and check results using Android application with a full touch screen
- Wifi communication, USB interface
Functions
- Built-in Live Fiber Test function (LFT)
- Improved very short range TDR measuring capability for 5G network (minimum 2m)
- Optical Power Meter
- Maximum measurement power of up to +15dBm (850nm, 1200~1700nm)
- Analyzer module for 5G DWDM / 4G CWDM optical signal channel analysis
- SFP DDM information display function
- Red LD power of up to 30mW for Visual Fault Locator
- Equipped with an 8 inch multi touch screen
Specifications
| ITEMS | PARAMETERS | UNITS | SPECIFICATIONS |
|---|---|---|---|
| GENERAL | CPU(OS) | - | Exynos7420(Android 6.0) |
| Display | - | 8 inch(1920 * 1200 px) | |
| Battery charging time | hr | 9 | |
| Continuous use time | hr | 12 | |
| Size | mm | 244 x 172 x 76 (WxHxD, mm) | |
| Weight | kg | 1.63 | |
| OTDR | Test wavelengths | nm | 1550/1625 |
| Dynamic range | dB | 37/36 | |
| Pulsewidth | nsec | 3 ~ 20,000 | |
| Event deadzone | m | < 1.5 | |
| Attenuation deadzone | m | < 6 | |
| Min. distance resolution | cm | 33 | |
| Distance accuracy | m | ± (1+3*10^-5 ⅹ distance + sampling resolution) |
|
| Averaging time | sec | 1 ~ 300 | |
| Real-time scan | - | Available | |
| LASER SOURCE | Wave length | nm | 1550 |
| Output power | dBm | > -3 | |
| OPTICAL POWER METER | Wavelength range | nm | 850, 1200 ~ 1700 |
| Power range | dBm | -50 ~ +15 | |
| Display resolution | dB | 0.01 | |
| Power accuracy | dB | ± 0.5 | |
| VISUAL FAULT LOCATOR | Source wavelength | nm | 650nm FP laser |
| Output power | mW | > 30 | |
| DWDM/CWDM ANALYZER | DWDM/CWDM channel | CH | 18 |
| Dynamic range | dB | ≥ 40 | |
| Max. input power | dBm | 7 | |
| Measurement time | Sec | ≤ 0.5 | |
| SFP TRANSCEIVER TESTER | Dynamic range | dB | 50 |
| Support Single/Dual core | - | Available |
