XCAL-PU9 (discontinued)
Portable wireless network Benchmarking Solution
- Versatile 3 in 1 Benchmarking Platform up to 9UEs

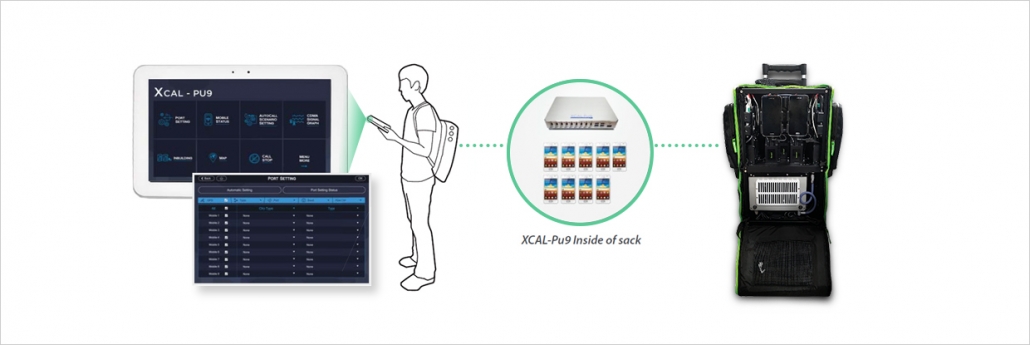

- XCAL-PU9 packages drive test, unattended benchmarking and an in-building test solution into a compact, lightweight and powerful tool. The Pu9 can support up to nine mobile phones that can be provisioned to benchmark a range of competitors over all key mobile access technologies like 2G, 3G, LTE, LTE-A (CA ~ 6CA), PS-LTE (MCPTT), eMTC (Cat.M1) and NB-IoT. Thanks to its light weight chassis, it is suitable for walk test.
Use XCAL-PU9 to
- Perform both manual and autonomous competitive network benchmarking and troubleshooting
- Conduct a wide range of application testing and application performance analysis
-
Monitor and improve
- Web browsing
- HTML : Mobile Messaging
- SMS : Downloads and Uploads
- FTP/iPerf : Streaming Video and audio
- YouTube : mVolP and VoLTE
Benefits
- XCAL-PU9 guarantees the best possible mobile experience on the network to ensure customer satisfaction
-
Coupled with XCAP-Vuze, AEGIS, the Pu9 can also be used in end to end network performance assessment and network auditing
- Streamlined network application testing
- Reduced costs – ‘all in one’ platform means that XCAL-PU9 can be used to perform a variety of tests on one scalable platform
- SMS : Downloads and Uploads
- Increase test accuracy and detail
- Monitoring the most important live services
- Improved time to market for new services
- Perform standard-based Voice MOS Tests
Features
-
Interfacing with various devices
- Mobile Phone, USB Modem (Smart phone: up to 9 / USB modem: 1)
- GPS (1 unit)
- Scanner (2 unit)
- Backpack carriable, High mobility for walking test
- External battery pack applicable
- Support standard based MOS test
- Support various QoS algorithm
- PESQ: P862, P862-1, P862-2
- POLQA: P863 Narrow Band & Wide Band
XCAL PC Based Solution Capacity
| CONTENTS | XCAL | MPM4 | PU9 | MO III | MTS |
|---|---|---|---|---|---|
| AUTOCALL SUPPORT | ☑ |
☑ |
☑ |
☑ |
☑ |
| NO. OF DEVICE INTERFACING | 4 | 4 | 9 | 30 | 40 per Rack (with 20UE Shield box) |
| FIELD TEST | ☑ |
☑ |
☑ |
||
| IN-BUILDING TEST | ☑ |
||||
| MOS TEST | △Support with MC-CM132 cable set |
☑ |
☑ |
☑ |
☑ |
| BENCHMARKING TEST | ☑ |
☑ |
☑ |
☑ |
Specification
| TITLE | SPECIFICATION | NOTE |
|---|---|---|
| POWER INPUT | DC 24V | |
| POWER CONSUMPTION | Stand-by < 10W (MCU Stand-by) Stand-by < 60W (CPU Stand-by) Maximum < 240W | |
| CPU | Intel Core i7-4700E 2.4GHz (Haswell) | |
| HDD/SSD | 128GByte / 256GByte | |
| EXTERNAL INTERFACE |
USB3.0 x 4 ports 1Gbps LAN x 2 ports Master Phone Interface x 9 |
|
| PHONE INTERFACE | Connector: USB 3.0 | Maximum: 9 ports |
| SIZE | 228 x 46.5 x 160 (mm, W x H x D) | |
| WEIGHT | 1.56kg | |
| BAG (TOTAL WEIGHT) |
15.65kg (Bag+9 Mobiles+1 Battery+etc) 18.35kg (Bag+9 Mobiles+2 Batteries+etc) |
Running Time (Battery) : 4H ~ 5H Running Time (2Batteries) : 8H~10H |
