PRODUCTS
At Accuver, we’re driven to help our customers and theirs be the first to reach new frontiers of
wireless performance, innovation, value and trust.

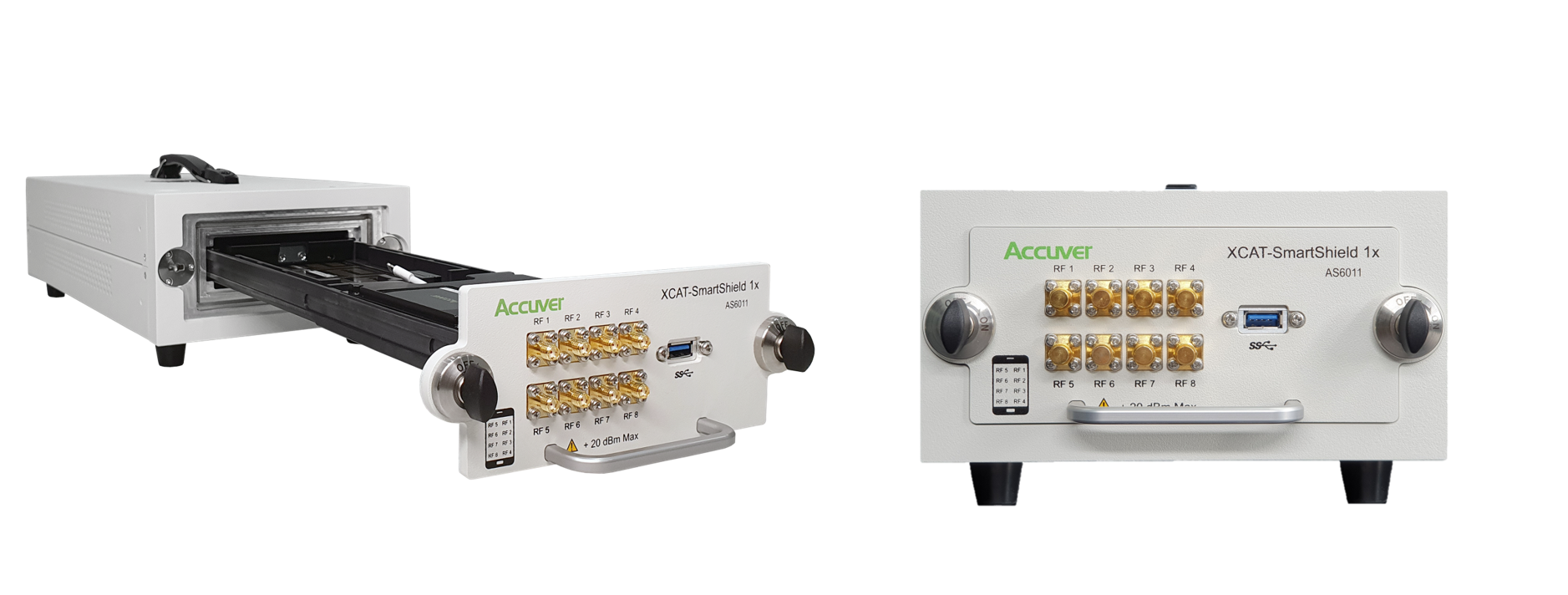

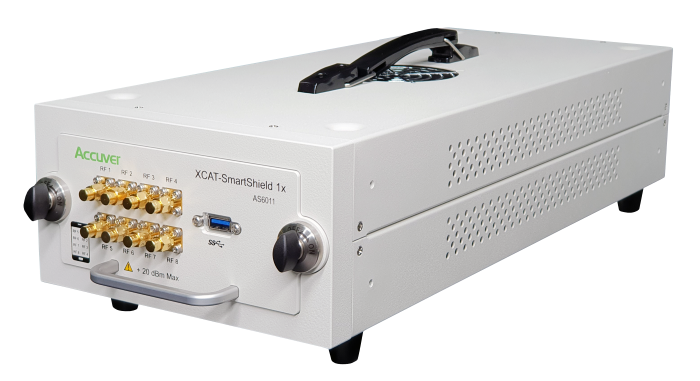

XCAT-SmartShield

Massive-MIMO Air Interface Simulator

A shield box solution with OTA (Over-The-Air) technology applied for MIMO (Multiple-input and Multiple-output) testing
XCAT-SmartShield transmits a reference signal through probe antennas. It measures RSRP in a field MIMO environment to allow 1 to 1 connection between BS Tx and UE Rx antenna with physical RF cable connection in a lab area. However some of the recent UE device do not have externally figured antenna connector and unable to open the back cover. XCAT-SmartShield ease this hassle with providing virtual 1 to 1 wireless connection between BS and UE.
XCAT-SmartShield Overview
  • XCAT-SmartShield is a shield box solution with OTA (Over-The-Air) technology for MIMO (Multiple-input and Multiple-output) testing. It offers user-friendly interface with high accuracy, consistency, and stability. It also improved the performance of existing shield box such as connection loss and crosstalk
  • XCAT-SmartShield offers 1 to 1 connection between BS and UE antenna by implementing 8 couplers for short-range probing to minimize connection loss with device
  • One of XCAT-SmartShield’s strength is to connect with RF port which has a least connection loss, therefore it minimizes channel uncertainty caused by air-channel inside a shield box and user can have wired connection environment and result
Benefits
  • User can secure high level of test reliability and stability
  • Low level of crosstalk between antenna ports secure reliable MIMO testing
  • Supports smartphones without external antenna connector
  • Allows to have reliable test results by offering no antenna replacement
  • No interference from outside (Isolation rate : > 60dB)
  • Easy to replace smartphones for testing
Specification
ITEm GENERAL OPTIONAL
FREQUENCY ~ 6GHz
RF PORTS 8 ports (SMA Female)
CONNECTION LOSS < 20 dB RF connector to UE
CROSS-TALK < -20 dB (with cross-talk cancelling)
ISOLATION > 60 dB
MAX INPUT SIGNAL LEVEL +20 dBm
SMART FUNCTIONS

Cross-talk cancelling

Maximum received signal power

with MAIS
DIMENSION 196mm x 101mm x 373mm (W x H x L)
WEIGHT 5 kg
