XCAT-IXA
Cloud Spectrum Analyzer

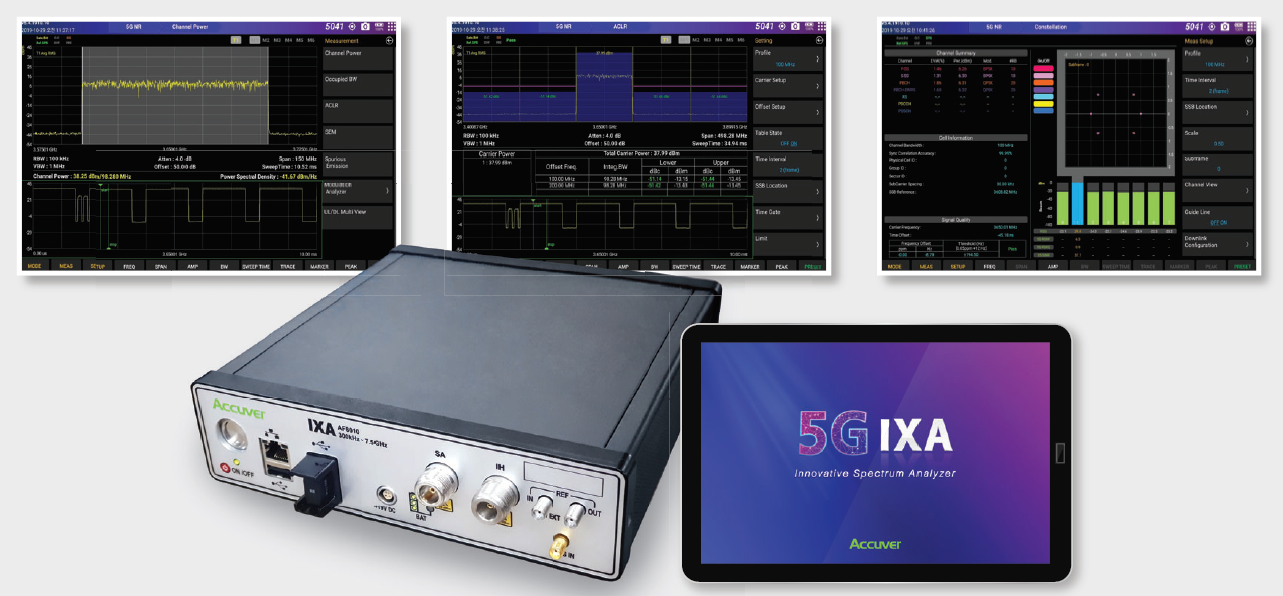

- Handheld Spectrum Analyzer based on Cloud Server XCAT-IXA is field portable solution for validating all aspects of 3G/4G/5G cell site deployment, maintenance and management.
- XCAT-IXA is specialized handheld 5G-NR spectrum analyzer integrated with cloud server which supports autonomous measurement. This solution offers and opportunity to reduce OPEX and CAPEX across the whole network lifecycle, from initial deployment to maintenance and upgrades, by saving up front equipment cost and staffing expense.
Use XCAT-IXA to
- Autonomic measurement without human error
- Measurement of spurious waves in the field
- eNB or Repeater Maintenance Service
- Instant measurement and analysis, DB datafication
Benefits
- Easy of movement and measurement through wireless connection with tablet PC
- High efficiency by using autonomous measurement without human error
-
Cloud Client
- Economic and low operating cost
- Light Weight & Handheld
- Spectrum Analysis (5G NR, LTE, WCDMA)
- Signal Analysis (5G NR, LTE, WCDMA)
- Spurious wave Measurement
- Coverage scan function
- Support google map
- Recharable battery operated
- Search eNB using QR Code
- Autonomous Measurement Function
-
Cloud Server
- Upgrade Management
- The Statistic Function
- Set Autonomous Scenario
- Autonomous Measurement Records
- Predicting spurious point on the server and sharing this point between members
- User management
- Measured Data Analysis
Features
| PRE-CONFIGURED SIGNAL ANALYZER |
|
|---|
| 5G NR | Duplex | TDD | |
|---|---|---|---|
| Channel BW | 5/10/15/20/25/30/40/50/60/70/80/90/100 MHz | ||
| Subcarrier spacing | 15/30/60 kHz | ||
| Measurement Item | Cell Info |
|
|
| Power Info |
|
||
| Signal Quality |
|
||
| LTE | Duplex | FDD and TDD | |
|---|---|---|---|
| Channel BW | 1.4/3/5/10/15/20 MHz | ||
| Measurement Item | Cell Info | PCI, Group ID, Sector ID | |
| Power Info | RSTP/RSRP, RSRQ, OFDM Symbol Power | ||
| Signal Quality |
|
||
| WCDMA | Duplex | FDD | |
|---|---|---|---|
| Measurement Item | Code domain |
|
|
| Modulation Accuracy |
|
||
H/W Specification
| ITEM | Description |
|---|---|
| FREQ. ACCURACY | ±0.05ppm + Aging (1ppm/year) |
| FREQ. RANGE | 300kHz ~ 7.5GHz |
| POWER ACCURACY |
+20 ℃ to +30 ℃ 1MHz ~ 7.5GHz : ≤±1.3dB (±0.5dB typical) 100kHz RBW |
| REF. LEVEL RANGE | -200 ~ + 100dBm |
| FREQ. SPAN (MIN~MAX) | 0Hz (Zero Span), 10Hz ~ 7.5GHz |
| RBW/VBW | RBW : 1Hz ~ 10MHz / VBW : 1Hz ~ 10MHz (1-3-10 sequence) |
| DETECT TYPE | Peak & Negative, Peak, Sample, Negative, RMS |
| MARKER | Number of Marker : 6 (Normal/Delta/Fix/Off) |
| MAX INPUT LEVEL | Average continuous power : +20 dBm |
| INPUT ATTENUATOR ( MIN ~ MAX) |
0 ~ 60dB |
| HARMONIC DISTORTION | 10MHz ~ 700MHz : <-40dBc (Typ.), 700MHz ~ 7.5GHz : <-70dBc (Typ.) |
| THIRD ORDER INTERCEPT (TOI) |
100MHz ~ 3GHz : +10dBm (Typ.), 3GHz ~ 7.5GHz : +12dBm (Typ.) |
| PREAMP GAIN (MAX) | 15dB |
| PREAMP REVERSE FILTER | Built-in 34 dB LNA and Uplink Bandpass Filters |
| 10MHZ REF. CLOCK | Internal, External, GPS |
| TEMPERATURE RANGE (OPERATING) |
Internal, NR SSB, External 1PPS, GPS |
| TRACE | Number of Trace : 5 (Clear Write/Average/Min Hold/Max Hold) |
| WIRED/WIRELESS COMMUNICATION SPEED | 40/25Mbps |
| TEMPERATURE RANGE (OPERATING) |
Battery Discharging : -10℃ ~ +50℃, Battery Discharging : 0℃ ~ +40℃ |
| TEMPERATURE RANGE (STORAGE) |
-20℃ ~ +80℃ |
