XCAL-Harmonizer
Multi-Smartphone based Portable Field Testing Solution
- Smartphone based Network QoS and QoE Benchmarking
- XCAL-Harmonizer is a portable field testing solution to mainly conduct benchmarking tests specially in driving test and in-building test. It is provided with minimum-sized ultra-light field testing solution while supporting maximum ranges of both indoor/outdoor field tests including inside of a building, mountain trails, subways, and etc.

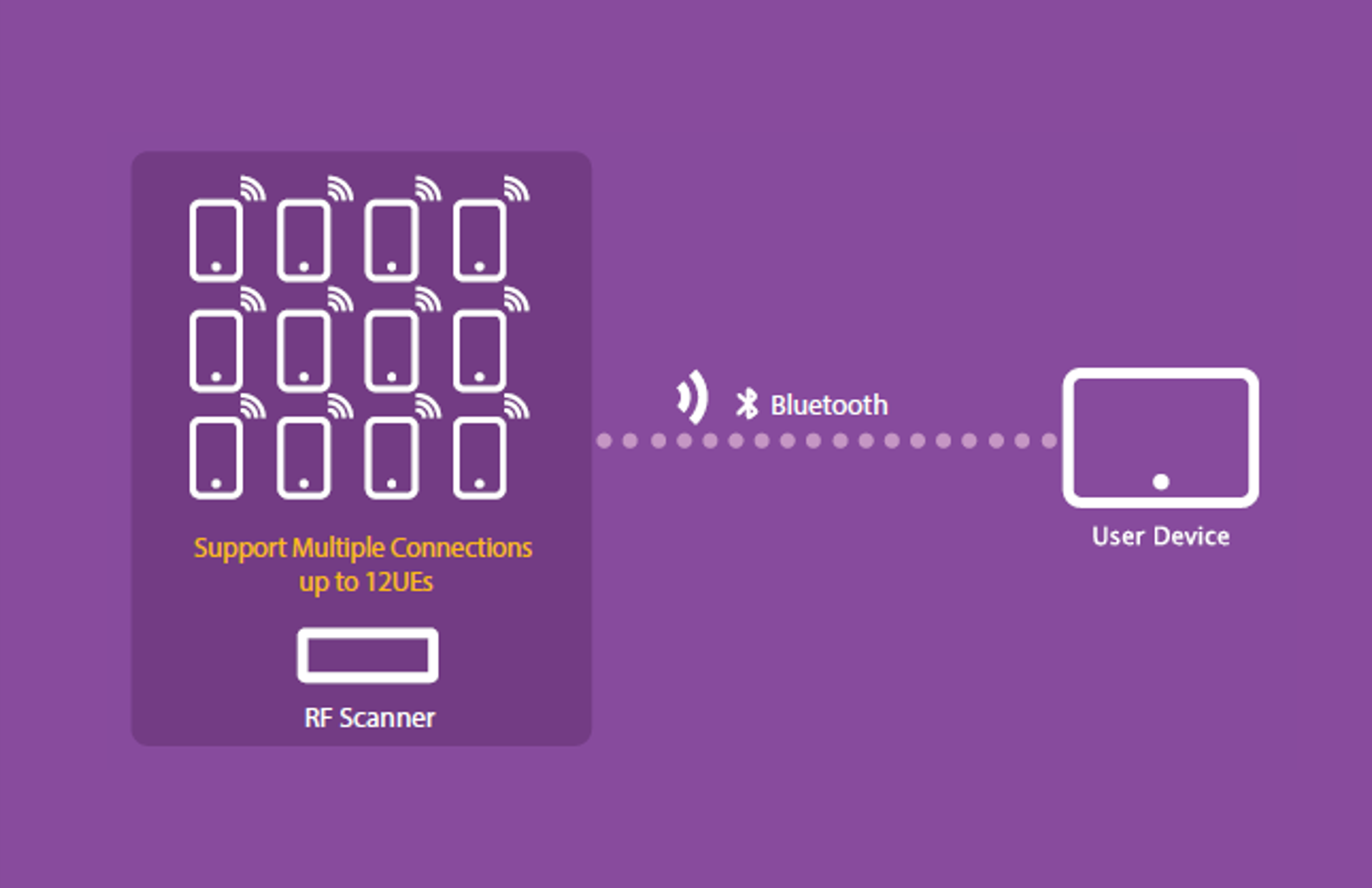

XCAL-Harmonizer Overview
-

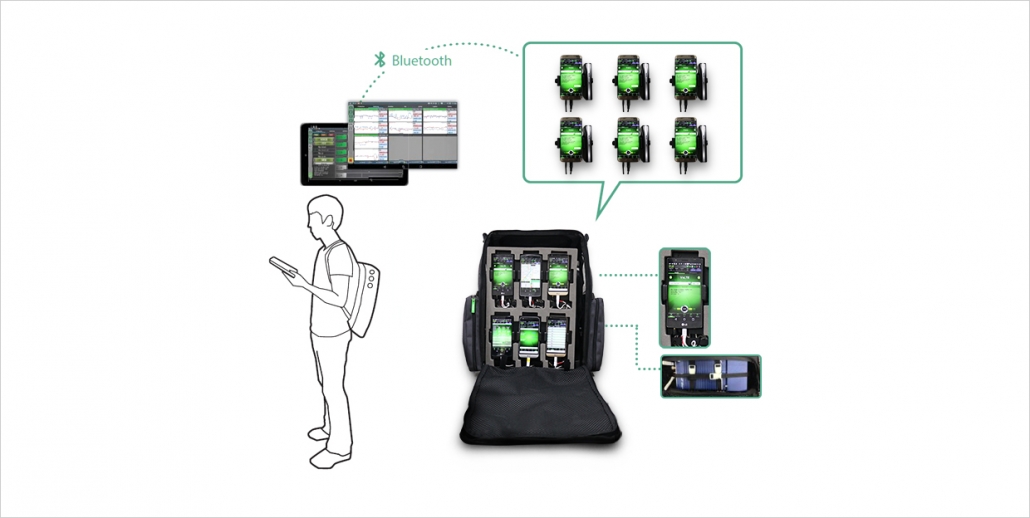

Component of XCAL-Harmonizer
- HW : XCAL-Harmonizer Box including embedded XCAL-Solo
- SW : XCAL-Harmonizer APP on tablet PC
-
Deployment Types
- Indoor Network Optimization
- Operator and Service benchmarking
- Small cell and DAS deployment verification
- To evaluate test requirements
-
User Groups
- Network Operators
- Service Companies
- System Vendors
- Infrastructure leasing companies
- Regulators
- Train Operators
- Mass gathering Hosting Venues (Stadiums, Concert Halls)
- XCAP post processing software
- Small cell and DAS deployment verification
Benefits
- Cost effective and rapid deployment
- Using proven XCAL-Mobile platform to record full optimization dataset
- Part of the XCAL family of products, sharing commonality in log file format and analysis
- XCAP post-processing software
- Small cell DAS deployment verification
Application of XCAL-Mobile based solution
| CONTENTS | XCAL-Mobile | XCAL-Solo | XCAL-Harmonizer |
|---|---|---|---|
| AUTOCALL SUPPORT | ☑ |
☑ |
☑ |
| NO. OF DEVICE INTERFACING | 1 | 1 | 4/6/8/12 |
| FIELD TEST | ☑ |
☑ |
☑ |
| IN-BUILDING TEST | ☑ |
☑ |
☑ |
| MOS TEST | ☑ |
☑ |
☑ |
| SINGLE BENCHMARKING TEST | ☑ |
Feature
| CONFIGURATION SETUP | Management of connection with UE | Connection/Disconnection available for each UE by Bluetooth Display Connection Status |
|---|---|---|
| Management Scenario setting of Each UE | Support FTP, CSFB, VoLTE, Multi-Call, HTTP, Ping, WiFi management, Email, SMS, Youtube, Multi-RAB, Multi Session, MMS, TraceRT, Iperf, Idle, MCPTT | |
| MONITORING | Log data info | |
| Display Autocall Status including Log data info | ||
| Display Autocall Statistics including RF/ENDC/LTE CA Info/Signaling Graph/Cell Measurement/Signaling Msg/User Defined | ||
| IN-BUILDING | Setup for In-building Measurement | Support setup function for In-building measurement |
| Get address from GPS information | ||
| DB selection of saved building available | ||
| Choice of building type and type of measurement site available | ||
| Photograph and transmitting pictures of measured sites available | ||
| MAP | Display location and result on Google Map in real time | |
| PCTEL IBFLEX SCANNER MANAGEMENT | Support scan list | 5G NR, LTE enhanced TopN signal |
| GSM color code | ||
| RSSI Scan | ||
| Blind Scan | ||
| WiFi (AP Scan) | ||
| R&S TSMA SCANNER MANAGEMENT | Support scan list | 5G NR, LTE Signal |
| LOG FILE MANAGEMENT | Log file management function for each device | Display a list of log file that saved at each mobile |
| Support log file deleting function | ||
| Support upload of log file through designated FTP server | ||
Specification
Multi Handy Solution embedded in Smart Phone
| XCAL-Harmonizer (4 MOBILES) | ||
|---|---|---|
| SIZE | 234 x 450 x 100 (mm) | |
| WEIGHT (WITHOUT SMARTPHONES) | 3.1Kg | XCAL-Harmonizer (HW) Only |
| WEIGHT (WITH 4 SMARTPHONES) | 4.7Kg | Including 4 smart phones and 2 x 20000mAh battery pack for 8 hour testing |
| XCAL-Harmonizer (6 MOBILES) | ||
|---|---|---|
| SIZE | 320 x 450 x 100(mm) | |
| WEIGHT (WITHOUT SMARTPHONES) | 4.2kg | XCAL-Harmonizer (HW) Only |
| WEIGHT (WITH 6 SMARTPHONES) | 6.4Kg | Including 6 smart phones and 3 x 20000mAh battery pack for 8 hour testing |
| XCAL-Harmonizer (8 MOBILES) | ||
|---|---|---|
| SIZE |
Open : 470 x 450 x 100 (mm) Close : 234 x 450 x 200 (mm) |
XCAL-Harmonizer (HW for 4 Mobiles) x 2 in 1 Baggage |
| WEIGHT (WITHOUT SMARTPHONES) | 6.3kg | XCAL-Harmonizer (HW) Only |
| WEIGHT (WITH 8 SMARTPHONES) | 9.7Kg | Including 8 smart phones and 4 x 20000mAh battery pack for 8 hour testing |
| XCAL-Harmonzier (12 MOBILES) | ||
|---|---|---|
| SIZE |
Open : 642 x 450 x 100 (mm) Close : 320 x 450 x 200 (mm) |
XCAL-Harmonizer (HW for 6 Mobiles) x 2 in 1 Baggage |
| WEIGHT (WITHOUT SMARTPHONES) | 8.4kg | XCAL-Harmonizer (HW) Only |
| WEIGHT (WITH 12 SMARTPHONES) | 12.9Kg | Including 12 smart phones and 6 x 20000mAh battery pack for 8 hour testing |
