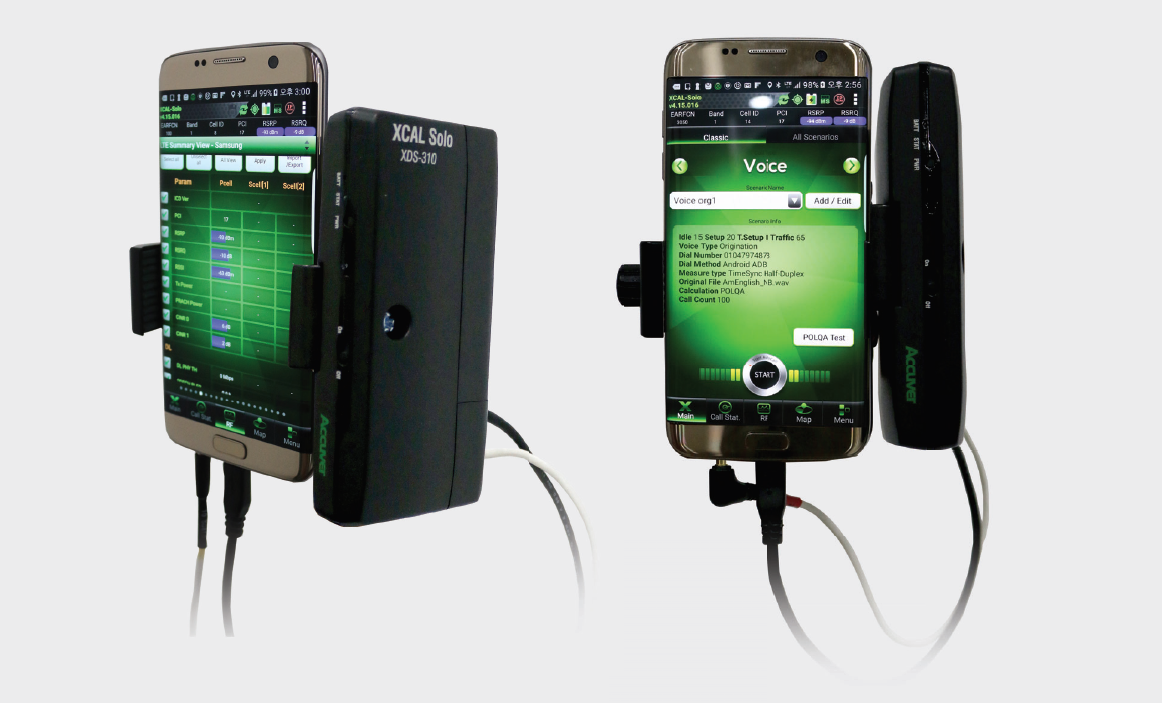

XCAL-Solo II
Unlimited Handheld Network Testing Solution
- Smartphone based network QoS and QoE logging solution including Voice MOS
- XCAL-Solo is a handheld air interface measurement tool for QoS, QoE test for GSM, CDMA, WCDMA and LTE-A (up to 5CA), 5G NR and DSS (Dynamic Spectrum Sharing) Function without any limitation by attaching portable H/W to Smartphone to cover wide range application testing, including Audio MOS measurement, network measurement and data on the smartphone in real-time.
XCAL-Solo also supports creating and editing measurement scenario and various auto call tests (Voice, VoLTE, FTP, Web, E-Mail, Iperf, Ping, YouTube, Multi-Call, Multi-RAB, Multi-Session, UDP *only IoT) with user friendly touch interface from Android OS GUI.
Use XCAL-Solo to
- Perform handheld Field Testing and In-Building Testing
- Provide real-time-based RF data monitoring and statistics along with message, graph and table
- Portable design for gathering and checking DM log, main KPI information readily
- Collect full log data by using smartphone
Benefits
- Provide network measurement with latest and off-the-shelf smartphone without any limitation such as rooting, special binary
- Can be used without any limitation on the smartphone supporting data interface and Linux driver

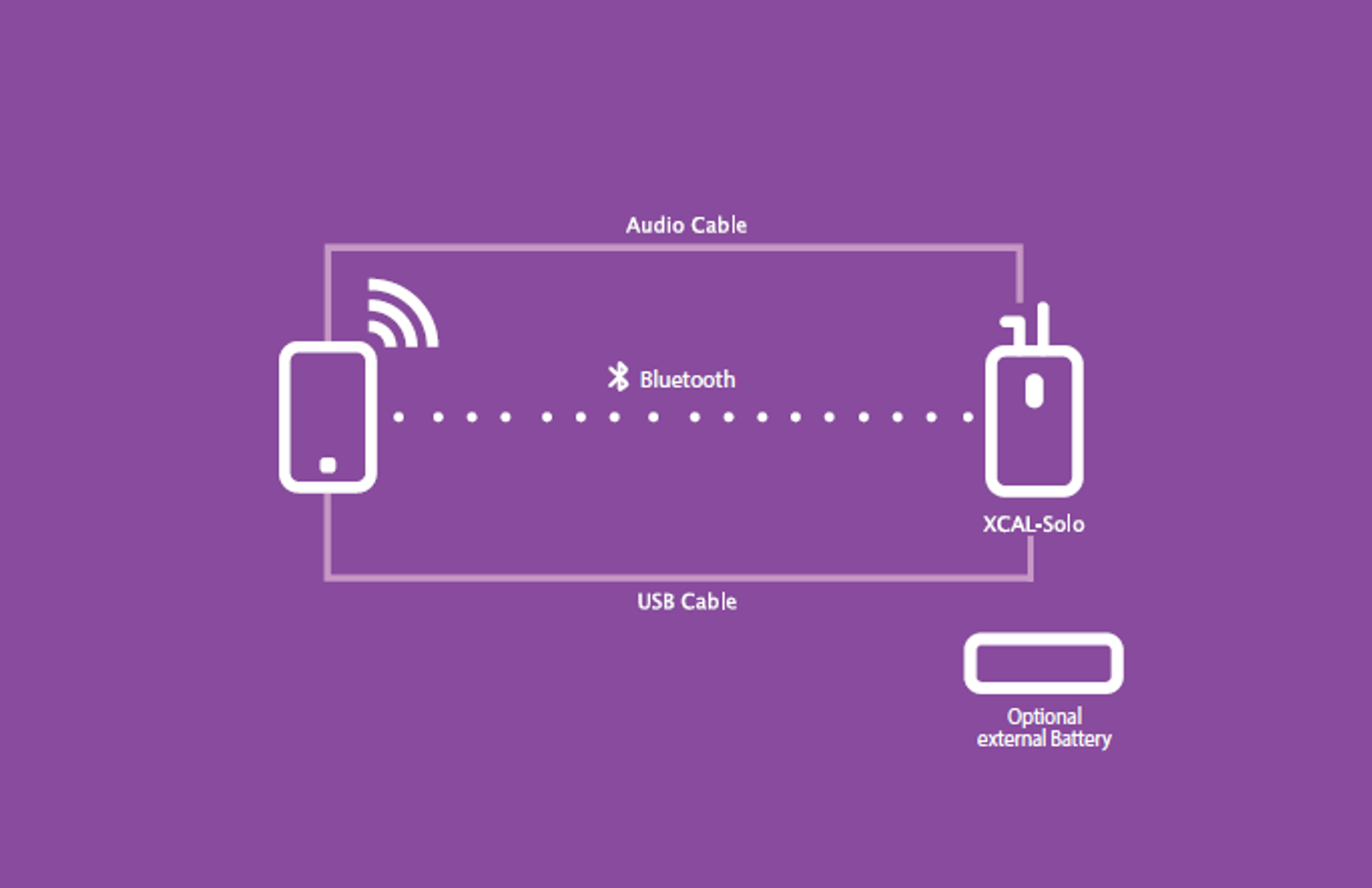

- Support POLQA since it has sound card in portable H/W and audio interface with cable
- With the help of small H/W, log data is collected in portable H/W through USB interface like XCAL
- Important KPIs are echoed to a LCD screen of smartphone in real time from a portable H/W
- Auto call is running in XCAL-Mobile and logging file is stored in portable H/W
Application of XCAL-Mobile based solution
| CONTENTS | XCAL-Mobile | XCAL-Solo | XCAL-Harmonizer |
|---|---|---|---|
| AUTOCALL SUPPORT | ☑ |
☑ |
☑ |
| NO. OF DEVICE INTERFACING | 1 | 1 | 4/6/8/12 |
| FIELD TEST | ☑ |
☑ |
☑ |
| IN-BUILDING TEST | ☑ |
☑ |
☑ |
| MOS TEST | ☑ |
☑ |
☑ |
| SINGLE BENCHMARKING TEST | ☑ |
Feature
| COLLECTING AND CHECKING | Collecting RF info from smartphone in real time |
|---|---|
| RF INFORMATION | Show each classified technology of RF info with message, graph, table and Google map |
| SUPPORT IN-BUILDING MEASUREMENT | Processing measurement by applying building info and layout of each levels |
| Processing measurement of fixed and mobile point of each levels based on arranged auto call scenario | |
| SUPPORT AUTOMATIC CALL MEASUREMENT | Create and edit auto call scenario by application in smartphone |
| Connect and disconnect voice and data call automatically | |
| MOS measurement by using POLQA | |
| SUPPORT AUTOMATIC ERROR REPORTING | Automatic error reporting by screen capture function |
| Automatic error reporting to technical support team | |
| VARIOUS FUNCTIONS | Uploading and replaying previously measured log file |
| Monitoring and reporting status of H/W | |
| Check quick guide manual in application | |
| REAL TIME MEASUREMENT MONITORING | Real time monitoring of measured data on application window |
| Automatic uploading of measured log file | |
| Check history of measurement of Call Result History window | |
| Check measured data on Google map | |
| EXTERNAL BATTERY | Available for a longer operation |
Specification
| TITLE | SPECIFICATION |
|---|---|
| OPERATING POWER | 3.8V (Internal Battery), 5.0V (External Battery) |
| BLUETOOTH | Bluetooth 4.1 |
| PHONE INTERFACE | USB2.0 (micro USB connector) x 1 Audio In/Out (3.5mm stereo jack) x 1 |
| BATTERY | 3.7V/3350mAh(18650 type) x 1 |
| MEMORY | Micro SD card slot x 1 |
| OPERATING CONDITION | Temperature : 0℃~50℃ Vibration : 3G (x-y-z axis) |
| SIZE | 66.9 x 119 x 27.5 (mm) |
WEIGHT |
260g |
HOURS OF USE |
9 hours (+10000mAh External battery) |
